45 Solid Round Steel 150mm Dia Glue Machine Doctor Roll

Brand Name : YH

Model Number : 2300-150

Place of Origin : Made in China

MOQ : 1 pcs

Price : 500-10000

Payment Terms : T/T

Supply Ability : 3000 pcs

Delivery Time : 30-45 days

Packaging Details : Wooden Boxes

Material : 45# round steel

Coating : Hard Chrome

Coating thickness : 30-50μm

Width : 2300mm

Diameter : 150mm

Refurbish : 2-3 times

Certification : ISO9001

Contact Now

45# Round Steel Hard Chrome Coating Doctor Roll for Single facer

Doctor roll

Doctor roll is used to control and adjust the glue volume on the surface of glue roll. Therefore, it is essential to regulate the gap between doctor roll and glue roll. The scrapers on the doctor roll are used to get rid of the glue on the surface of glue roll so that the glue roll can be used for next circulation.

Features:

Product name	Doctor roll
Application	Single facer, glue machine, double facer
Coating	Hard chrome 0.03-0.05mm
Diameter	50-500mm
The roller surface length	100-4000mm
Cylinder run-out accuracy	≤0.02mm
Cylindricity accuracy	≤0.015mm
Dynamic balancing accuracy grade G2.5	G2.5

1. Lathing

Lathe according to the drawing absolutely.

45 Solid Round Steel 150mm Dia Glue Machine Doctor Roll

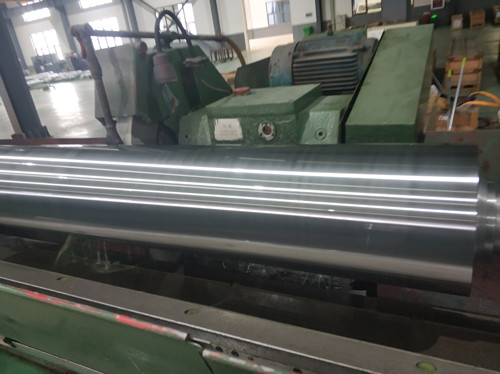

2. Advanced outer circle grinding machine

The outer circle grinding is same with pressure roll. After finish grinding, we coat hard chrome to exten its life time.

45 Solid Round Steel 150mm Dia Glue Machine Doctor Roll

3. Package

45 Solid Round Steel 150mm Dia Glue Machine Doctor Roll
